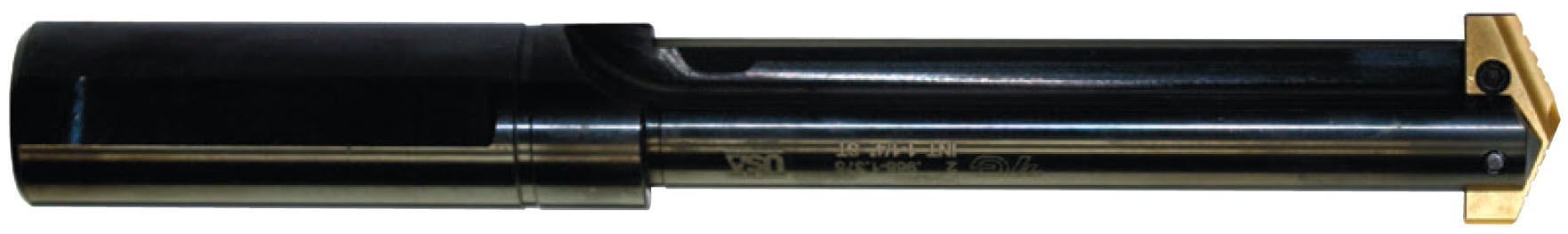

STRAIGHT SHANK / STRAIGHT FLUTE MED LENGTH HOLDER
P14304
STRAIGHT SHANK / STRAIGHT FLUTE MED LENGTH HOLDER
| Weight | 3.993 lbs |
|---|---|
| Dimensions | 14.50 × 2.13 × 2.13 in |
| Size | |
| Max. Insert Diameter Inch | 1.8750 |
| Max. Drill Depth Inch | 6.5000 |
| Flute Length Inch | 7.7500 |
| Reference Length Inch | 7.9375 |
| Overall Length Inch | 11.7500 |
| Pipe Tap | 1/4 |
| Cutting Direction | |
| System of Measurement | Inch |
| Min. Insert Diameter Inch | 1.4063 |
| Brand | YG-1 |
| Point of Origin | Korea |
| Material | |
| Finish/Coating | Oxide |
| Style | Straight Shank Spade Drill Holders |
| Shank Type | Straight |
| Flute Type | Straight |
| Through Coolant Yes/No | Yes |
| Spade Drill Series | 3 |
| Number of Flutes | 2 |
| Shank Diameter Inch | 1.5000 |
| Shank Length Inch | 4.0000 |
| Package Quantity | 1 |
