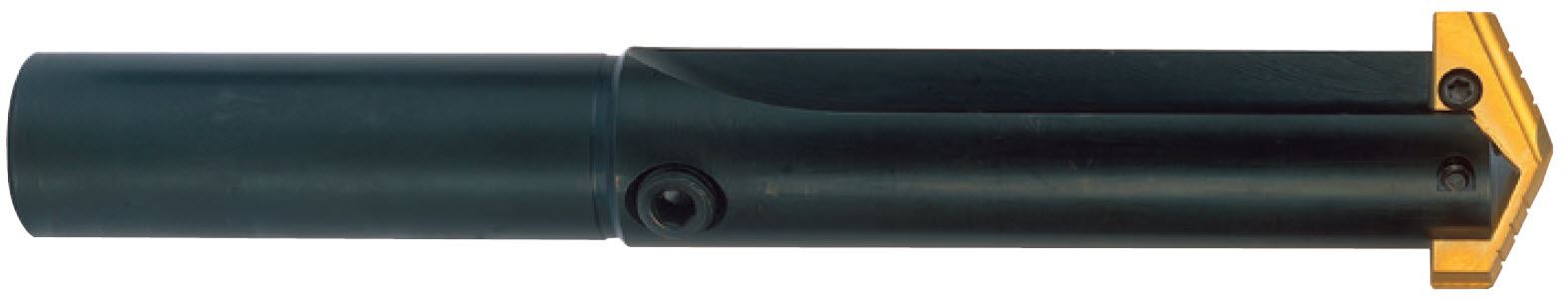

STRAIGHT SHANK / FLUTE SHORT LENGTH HOLDER
P13Z01
STRAIGHT SHANK / FLUTE SHORT LENGTH HOLDER
| Weight | 0.366 lbs |
|---|---|
| Dimensions | 5.38 × 1.25 × 1.25 in |
| Size | |
| Max. Insert Diameter Inch | 0.5000 |
| Max. Drill Depth Inch | 1.2500 |
| Flute Length Inch | 2.0313 |
| Reference Length Inch | 2.1250 |
| Overall Length Inch | 4.4063 |
| Pipe Tap | 1/8 |
| Cutting Direction | |
| System of Measurement | Inch |
| Min. Insert Diameter Inch | 0.4375 |
| Brand | YG-1 |
| Point of Origin | Korea |
| Material | |
| Finish/Coating | Oxide |
| Style | Straight Shank Spade Drill Holders |
| Shank Type | Straight |
| Flute Type | Straight |
| Through Coolant Yes/No | Yes |
| Spade Drill Series | Z |
| Number of Flutes | 2 |
| Shank Diameter Inch | 0.7500 |
| Shank Length Inch | 2.3750 |
| Package Quantity | 1 |
